OEM SS-AP280SB MDF Access Panel

We are focus on practical design and technology combination,
and make efforts to grow in the continuous upgrading.

Home / Product / STEEL ACCESS PANEL / SS-AP280SB MDF Access Panel
Products

Categories

  • SS-AP280SB MDF Access Panel
  • SS-AP280SB MDF Access Panel
  • SS-AP280SB MDF Access Panel
  • SS-AP280SB MDF Access Panel
  • SS-AP280SB MDF Access Panel
  • SS-AP280SB MDF Access Panel
  • SS-AP280SB MDF Access Panel

    • SS-AP280SB MDF Access Panel

    Location: Huzhou,China
    Packing details: PP bag ,white box, outer carton; Blister , carton
    Brands: OEM
    Certificate: CE,SONCAP SGS,CCC
    Terms of payment: Consultation
    Minimum order quantity: 1000pcs
    Delivery: By sea, by air , by courtier
    Delivery time: 25 days
    Contact Us

    Products Description

    Description:

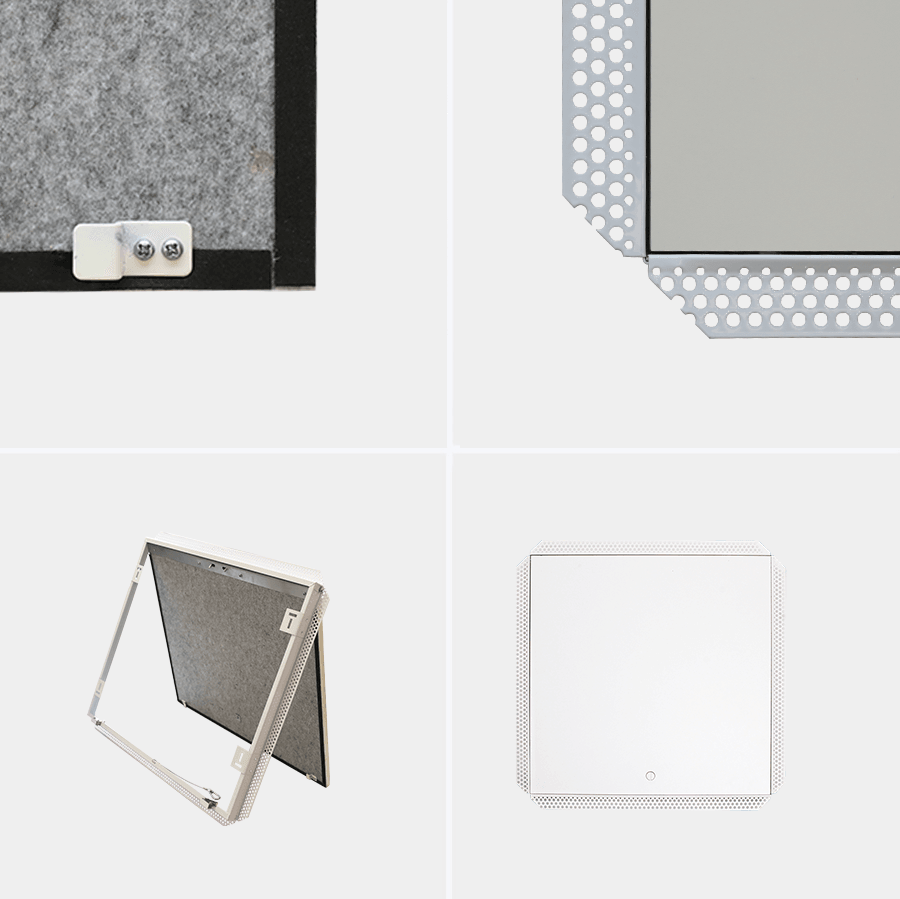

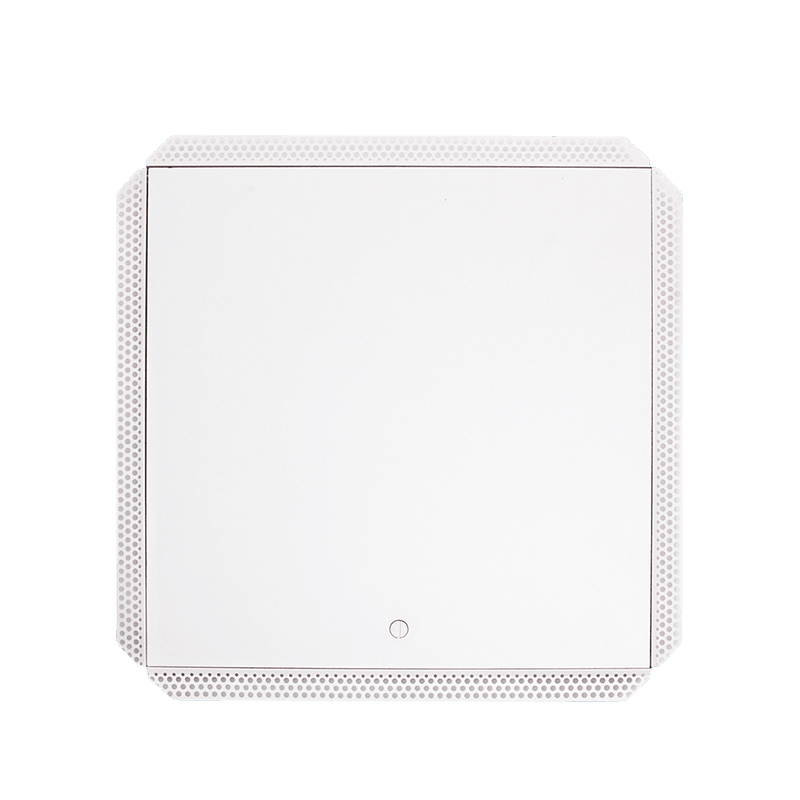

    1. MDF access panel for wall or ceiling application

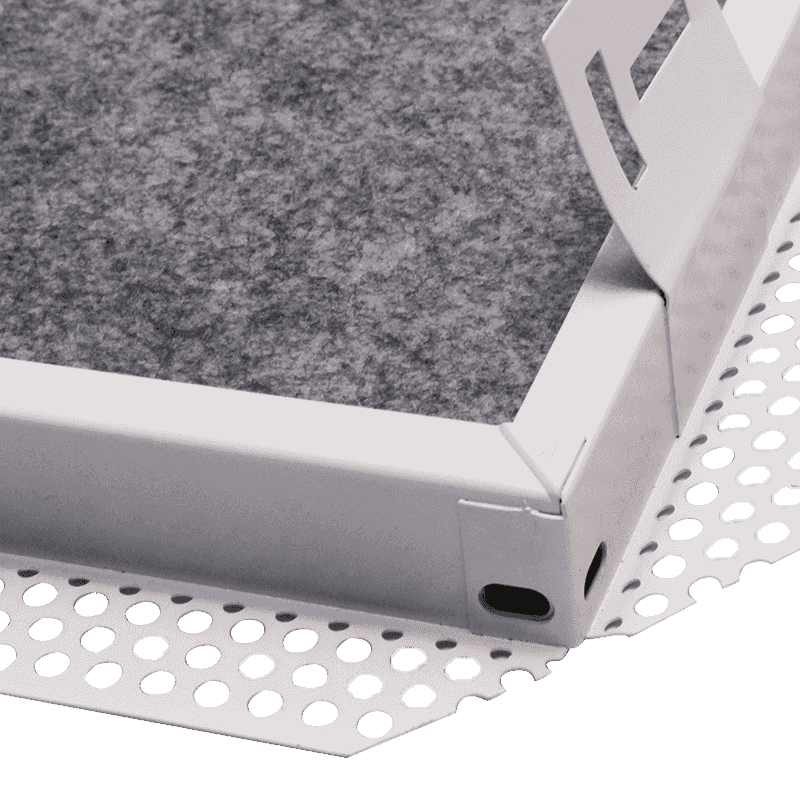

    2. 1 mm galvanized steel frame

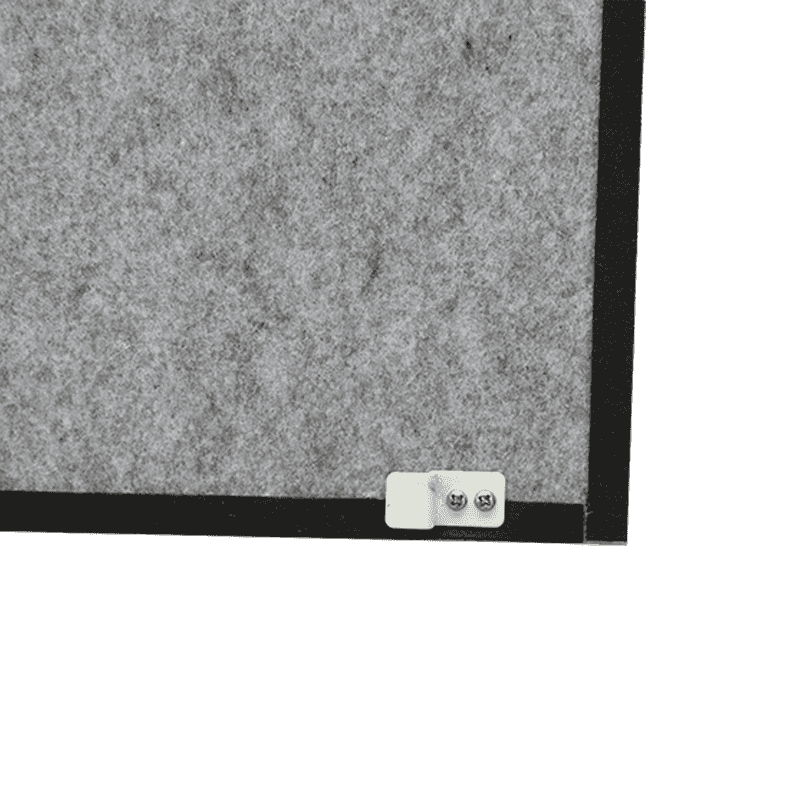

    3. 15mm MDF with felt covered
    4. Sound proof rubber sealing between door and frame

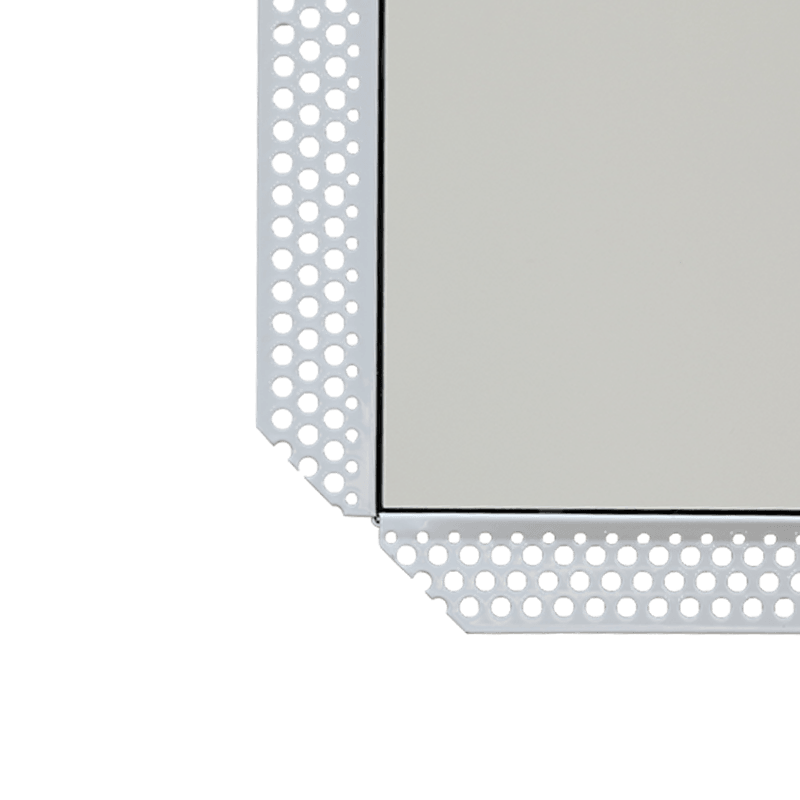

    5. Set Bead frame
    6. White powder coating finish or special color available
    7. High durability and corrosion protection

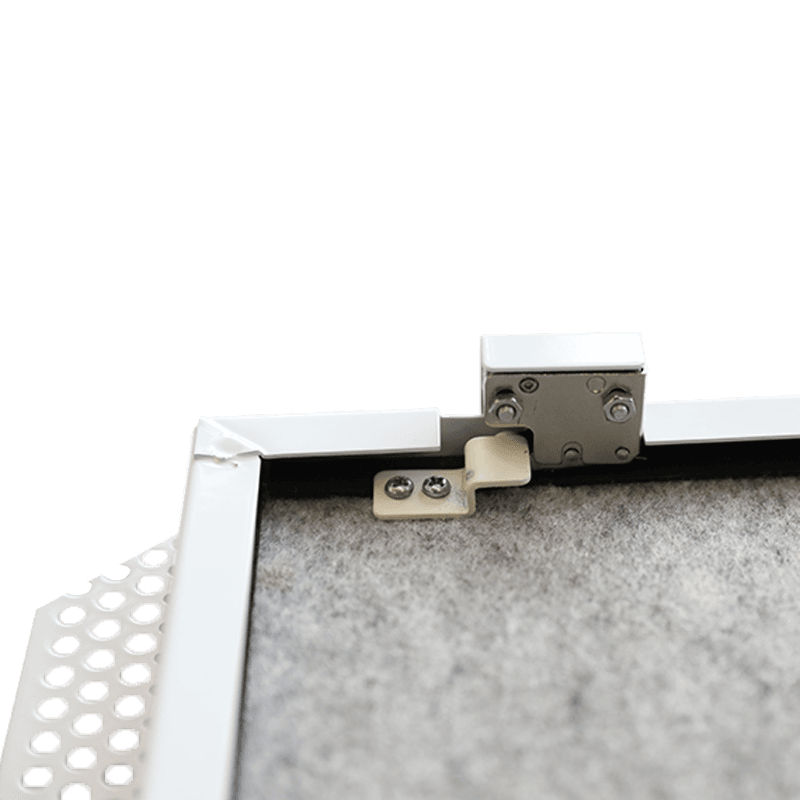

    8. Steel bar with spring hinges door removable
    9. Four bendable ears for fixing screws

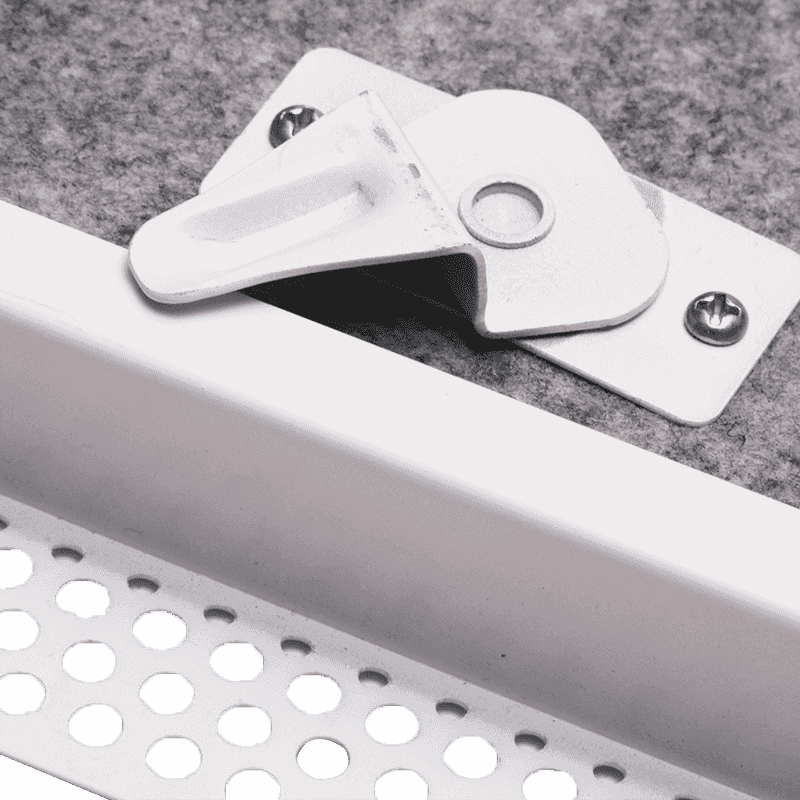

    10. Lock: slotted lock / square lock / budget lock
    11. Standard size : 20x20/30x30/45x45/60x60
    12. All size are welded frame

           Customized size available

    1. Packaging: Each piece put into poly bag with shrink wrap,

    then put into carton

    Advantage: Different locks available

                     Slotted lock operated by screwdriver or coin

                     Square lock operated by L key

                    Budget lock operated by T plastic key

    The access panel achieve a weighted sound reduction index rating of 30





    Item

    Neck Size(mm)

    Opening Size W1×L1(mm)

    Overall Size W2×L2(mm)





    SS-AP280 SB

    200×200

    196x196

    248x248

    300×300

    296x296

    348x348

    400×400

    396x396

    448x448

    500×500

    496x496

    548x548

    600×600

    596x596

    648x648
